1.Product Introduction
The oxygen rich side blown molten pool melting furnace is an efficient and energy-saving steel melting equipment. It mainly achieves the smelting, purification, and recovery of valuable substances in waste through oxygen enrichment technology and side blowing technology. Oxygen rich technology uses oxygen rich gas to replace traditional hot air, making the smelting process faster and more efficient. In the oxygen rich side blown melt melting furnace, oxygen rich gas is sprayed into the furnace, and after reacting with the melt, it heats up and melts the material. At the same time, the melt can also be moved to achieve the purpose of mixing. Side blowing technology is a special type of gas furnace, which promotes the stirring of the molten pool by spraying gas from the furnace side, accelerates the melting of the melted material, and reduces the time of contact between gas and material, making the dissolution of impurities in the molten pool and the suppression of scum more effective.
2.Processing objects
Slag, fly ash, battery circuit boards, etc. containing valuable metals such as lead, cadmium, nickel, copper, iron, etc.
3.Technical advantages
Efficient, stable, durable, and easy to operate
4.Characteristics
①. Strong adaptability to raw materials; The furnace materials do not require special treatments such as drying or fine grinding, and are easy to prepare. Materials containing 6% -9% can be directly fed into the furnace;
②. Rapid melting: The oxygen rich air that is blown into the melt vigorously stirs the melt. The furnace material quickly completes the main reaction between gas, liquid, and solid phases in the liquid state;
③The lead content in slag is low and the metal recovery rate is high. Oxygen rich side blowing allows the sulfur in the material to be fully burned and converted into heat energy, saving 30% of fuel. The reduction is good, and the recovery rate reaches 98%;
④The smelting process is simple, easy to operate, and the liquid level in the furnace is stable and adjustable. According to production requirements, the required height for stability is 950mm-1250mm. The stable liquid level can avoid fluctuations in air volume, air pressure, and other indicators caused by liquid level fluctuations, making it easy to achieve automated and stable control. The liquid level is adjustable, and the oxygen utilization rate can be adjusted by adjusting the liquid level height according to production needs to obtain stable grade crude lead. Personnel with experience in operating a closed blast furnace can easily master the furnace and its operation;
⑤. Low comprehensive energy consumption, good energy-saving effect, rich oxygen side blowing furnace can fully utilize the chemical reaction heat of the furnace material, and there are no strict requirements for the type and quality of fuel; Low fuel consumption, high production efficiency, good furnace sealing, environmental protection, low smoke and dust rate, and relatively low investment in post production facilities.

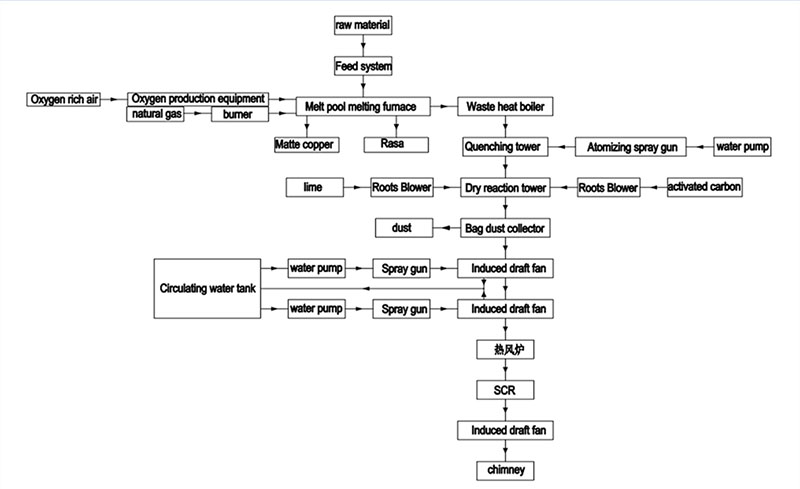

5.Process flow
